We undertake this design as: Millimeter-level imaging lens project

Parameters:
Viewing angle (°) 30°
Field of view (°) 80
Field of view center angle resolution (C/°) 8
Effective depth of field range (mm) 100
MTF 0.4@100lp 0.25@150lp
Imaging lens light efficiency greater than 0.75
Effective luminous efficiency (W/(m2*sr)) Related to coating and detector
Working length 330mm
Distortion 11%

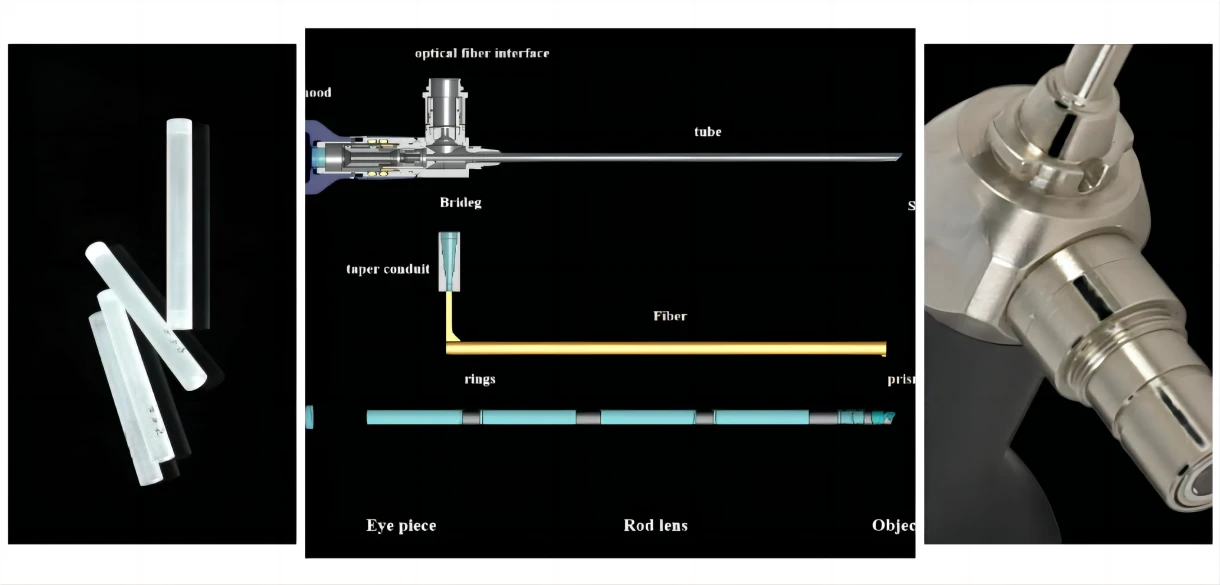

At the same time, we also can provide endoscope related accessories, including rod mirrors, objective lenses and other products.
